From Service Chaos to Detective Genius: Your Cloud-Native Investigation Toolkit

Why Distributed Systems Fail in the Dark (and How to Turn the Lights On)

Welcome back to the Cloud-Native Chronicles! In our last chapter, we turned NATS into the communication backbone of your microservices. Your services are talking. But how do you know if they’re actually saying the right things?

---

It’s 2:17 AM. Everything Is “Healthy.”

Latency spikes from 40ms to 900ms. CPU looks fine. Logs are noisy but inconclusive. Kubernetes reports every pod as green.

Production is not.

This is the dirty secret of microservices: distributed systems fail in distributed ways. A single request can impact a dozen services before it dies, leaving no obvious culprit. Without the right tools, debugging feels less like detective work and more like guessing in the dark.

Enter observability, the discipline of making your system legible from the outside.

---

The Three Pillars (and What They Actually Tell You)

Before we meet the tools, understand the model. Observability rests on three types of signal:

• Metrics tell you what is wrong: CPU at 95%, request rate dropped, error count climbing.

• Logs tell you what happened: The sequence of events leading to the failure.

• Traces tell you where it happened: Which service, which hop, which line of code broke the chain.

You need all three. Metrics without traces are like knowing someone has a fever without knowing why. Traces without logs leave you with a map but no story. The goal is correlation, stitching all three signals together into a coherent picture of system behaviour.

---

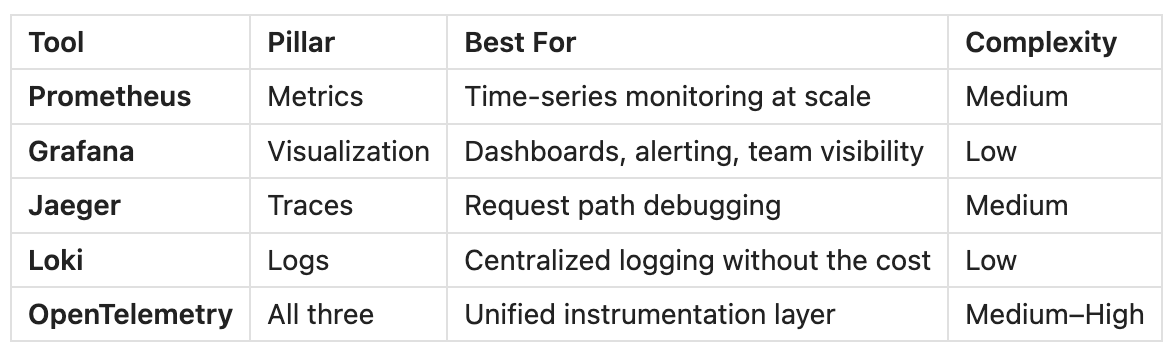

The Observability Toolbox

Here’s the dream team and what each one actually solves:

---

Prometheus: The Metric Engine

Prometheus scrapes time-series metrics from your services on a pull model; your apps expose an endpoint, and Prometheus collects them on a schedule. It integrates natively with Kubernetes and queries data through PromQL, a purpose-built query language for operational data.

# Prometheus config to scrape NATS metrics
scrape_configs:
  - job_name: 'nats'
    static_configs:
      - targets: ['nats:8222']  # NATS monitoring endpoint

To monitor message throughput in NATS, a more realistic PromQL query looks like this:

sum(rate(nats_server_in_msgs[5m])) by (server_id)

This gives you per-server inbound message rates over a 5-minute window, exactly the kind of signal you need when diagnosing throughput degradation.

Pro tip: Use the NATS Prometheus Exporter to surface message rates, subscription counts, slow consumer warnings, and more.

---

Grafana: Making Data Actionable

Prometheus stores data. Grafana makes it visible. The real value isn’t in the graphs themselves, it’s in the alerts. A well-configured Grafana instance tells you about problems before users do.

Build dashboards that show the signals that matter: error rates, latency percentiles, and queue depth. Alert on symptoms, not causes. “P99 latency > 500ms for 2 minutes” is a useful alert. “CPU > 70%” rarely is.

---

Jaeger: Following the Request

Jaeger is where distributed tracing lives. When a request enters your system and touches five services before failing, Jaeger shows you the full path, each hop, its duration, and where things went wrong.

// Starting a trace span in Go
ctx, span := tracer.Start(ctx, "process-order")
defer span.End()
// Each downstream call creates a child span — the full tree becomes your trace

Jaeger integrates cleanly with OpenTelemetry, which acts as the instrumentation standard across your entire stack. Instrument once, export anywhere.

---

Honorable Mentions

Loki gives you centralised log aggregation without the operational overhead of an ELK stack. It works natively with Grafana, so your logs, metrics, and alerts live in the same interface.

Fluentd handles log collection from containers and ships them to Loki or wherever you need them.

---

NATS + Observability: An Architectural Perspective

Since NATS is your communication layer, observability here carries extra weight. You’re not tracing simple HTTP calls. You’re tracing asynchronous message flows across subjects, queue groups, and JetStream consumers. A slow consumer on one subject can cascade across your entire system without a single HTTP error code to show for it.

The monitoring stack for a NATS-powered architecture should cover:

1. Server metrics via Prometheus expose NATS on port `8222`, scrape with the exporter.

2. Message-level tracing via OpenTelemetry propagates trace context through message headers across subjects.

3. Log aggregation via Loki or Fluentd pipes NATS server logs alongside your application logs for full context.

When all three are in place, that 2 AM latency spike becomes a 10-minute investigation rather than a 3-hour war room.

---

Observability Best Practices

1. Instrument early. Add metrics and tracing during development, not after your first incident.

2. Alert on symptoms, not causes. High latency and elevated error rates are the signals users feel. Alert on those.

3. Correlate across all three pillars. The fastest path to root cause is always metrics → traces → logs in that order!

---

What’s Next: Security

Now that you can see what your system is doing, it’s time to control who can do what inside it. In the next chapter, we move from observability to security because visibility without protection is just faster incident response.

We’ll cover Ory, Vault, and NATS security best practices: TLS, JWT authentication, and account isolation. The kind of setup that would make even a seasoned pentester pause.
